High performance laser

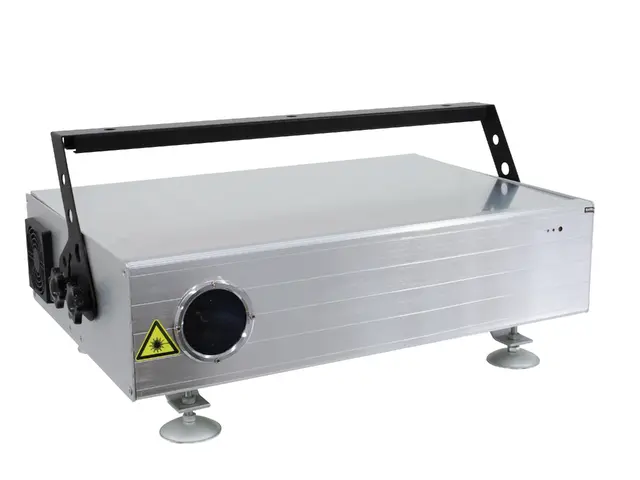

EUROLITE PSL-250 showlaser RGB

The article is no longer in our assortment.

Item no. 51741410

Features

High performance laser

Laser with the classification 3B
RGB-color-mixture
Operation: ILDA, DMX512, auto, sound-active
Effects: layers, grids, tunnels, waves, writing, graphics, animation
Laser diode: 650 nm red, 532 nm green, 473 nm blue
For DMX-operation on the rear panel: X and Y size adjustment, white balance
Laser safety by integrated scan control, interlock with mechanic shutter, key switch for locking startup
Read user manual before use. Laser installation, alignment and operation only by qualified and trained personell! Never open the housing!

Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	80,00 W
Dimensions:	Width: 60 cm Depth: 20 cm Height: 24 cm
DMX channels:	11
DMX connection:	3-pin XLR
ILDA-connection:	25-pin SUB-D
Maximum optical power:	250 mW
Laser classification:	3B
Wavelength:	650/532/473 nm
Laser-modules:	Red 150 mW, green 60 mW, blue 50 mW
Beam:	approx. 4 mm / 1 mrad
Galvos:	max. ILDA 24K
Scanning speed:	30000 pps
Dimensions without bracket (L x W x H):	600 x 400 x 240 mm
Weight:	15 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397353952	41,20 kg	73,5cm x 55cm x 48,5cm

Support

Spare parts

No spare parts available.
