EUROLITE Set EUROLITE LED Bar 18 TCL + Softbag

16°

The article is no longer in our assortment.

Item no. 09009956

Set consisting of:

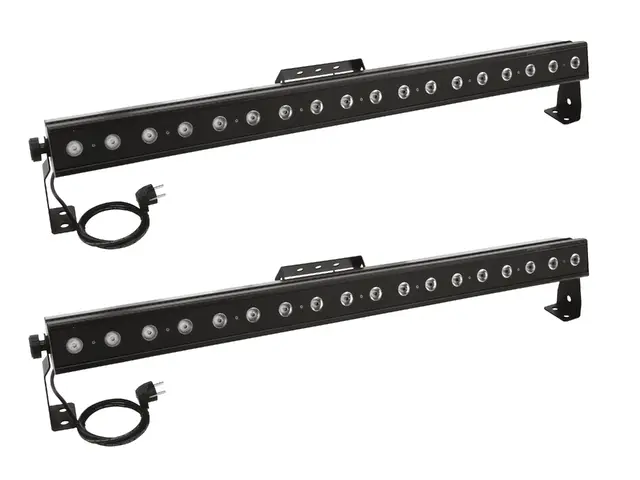

2 x EUROLITE LED BAR-18 TCL 18x3W

1 x EUROLITE SB-12 Soft Bag

Features

EUROLITE LED BAR-18 TCL 18x3W

LED bar with 18 x 3 W RGB LED (3in1)

Operable in stand-alone mode or via DMX
DMX512 control possible via any commercial DMX controller
3, 5, 12 DMX channels selectable for various applications
Sound-control via built-in microphone
Comfortable addressing and setting via control panel with LCD-screen and four operating buttons
Functions: Static colors, RGB color blend, internal programs, dimmer and strobe settings via DMX, Master/Slave
Equipped with 18 x 3 W tricolor LEDs
Hanging as well as standing installation possible
Locking possibility at the mounting bracket
IEC power cord with safety-plug included in delivery
18 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
Strobe effect
Control via stand-alone; DMX
Preprogrammed in Light´J; LED PC-Control 512
With a beam angle of 16°

EUROLITE SB-12 Soft Bag

Practical black soft bag for LED bars (1 m length), adjustable divider

Technical specifications

Weight:	14,97 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE LED BAR-18 TCL 18x3W
Power supply:	230 V AC, 50 Hz
Power consumption:	130,00 W
IP classification:	IP20
Lamp type:	LED lamp
LED type:	18 x 3 W high-power 3in1 TCL RGB (homogenous color mix)
Control:	Stand-alone; DMX
Preprogrammed in:	Light´J; LED PC-Control 512
Beam angle:	16°
Beam angle (1/2 peak):	16°
Housing color:	Black
Dimensions:	Length: 1,13 m Depth: 17 cm Height: 18 cm
Weight:	7,20 kg
DMX channels:	3 / 5 / 12
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	3 W TCL
LED number:	18
Beam angle:	16°
Dimensions (L x W x H):	1125 x 170 x 180 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE SB-12 Soft Bag
Maximum load:	20 kg
Carrying strap:	2 pc/pcs
Transport aid:	1 x shoulder strap
Material:	Textile
Color:	Black
Dimensions:	Width: 1,07 m Depth: 17 cm Height: 18 cm
Weight:	570 g
