10451560

OMNITRONIC A-2700 Amplifier,2x1350W/4 ohm

Loader
Loader
Loading product pictures. Please wait...
OMNITRONIC
A-2700 Amplifier,2x1350W/4 ohm

High-power amplifier

n° art. 10451560

  • Class H construction: 2-step power output
  • 2 x 1350 W/4 ohm
  • Enormous power with highest brilliance

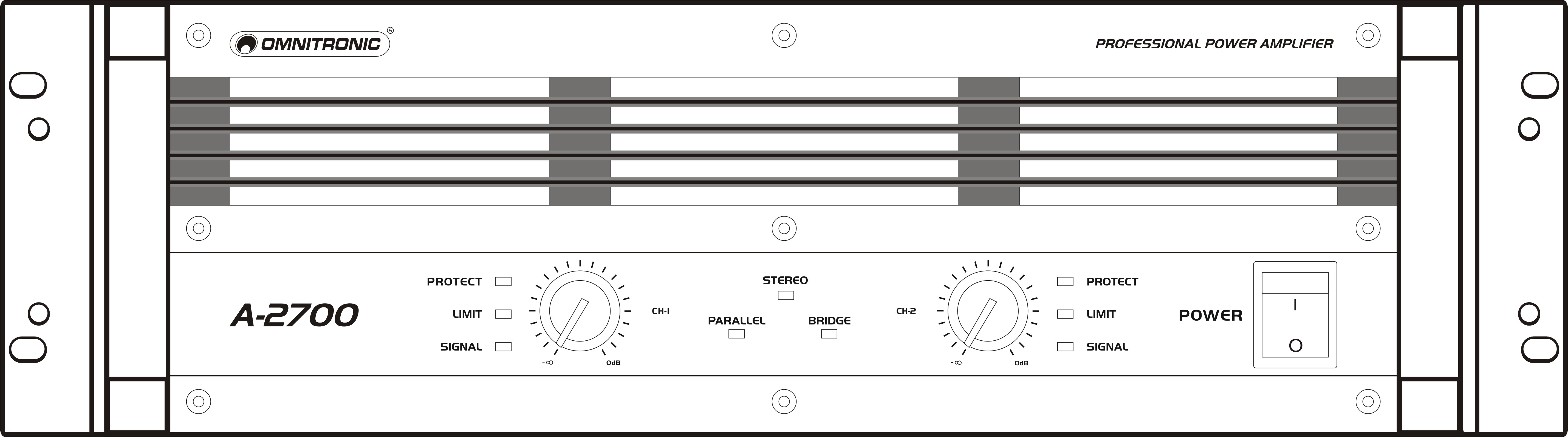

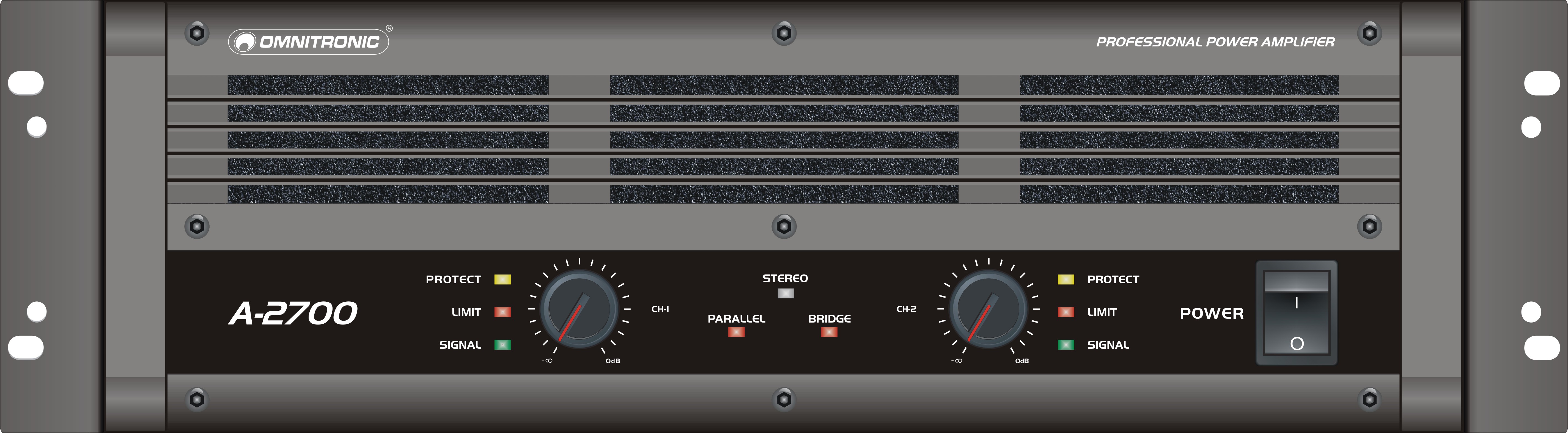

  • 2 gain controls on the front panel
  • All operation modes controllable via LEDs
  • Signal inputs via XLR/6.3 mm jack-mounting sockets
  • Signal outputs for daisy-chaining via XLR connector

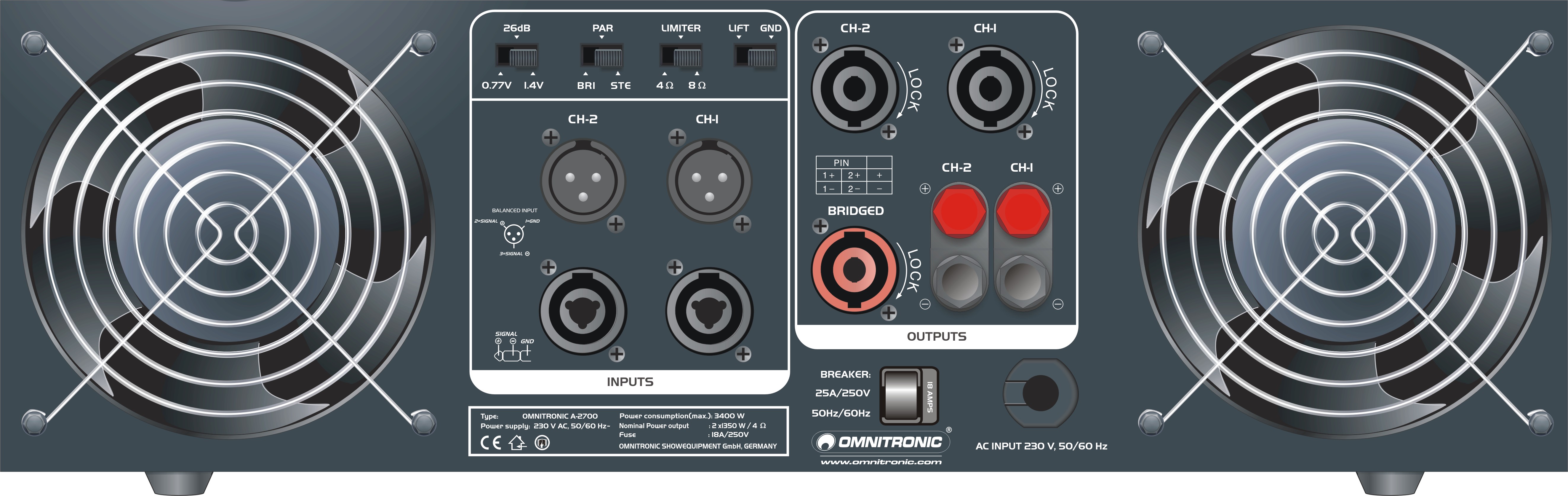

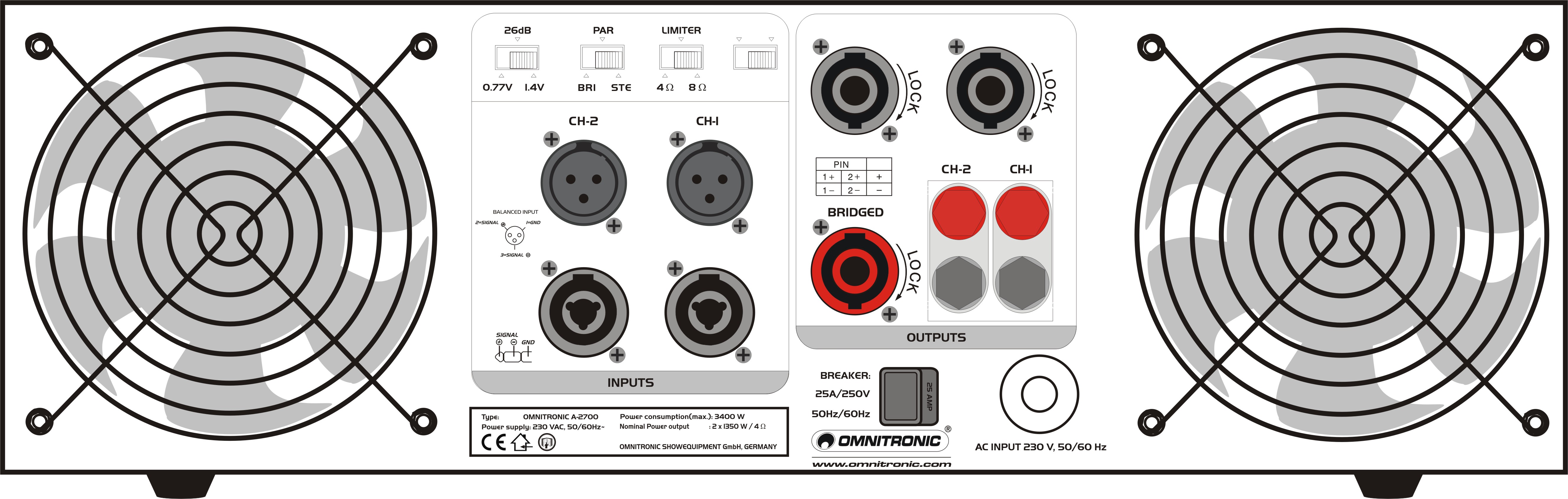

  • Input sensitivity adjustable via selector on the rear panel
  • Speaker connection via lockable Speaker plugs or screw terminals
  • Limiter adjustable to the load impedance
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Many protection circuits for optimized equipment-protection
  • Very rugged housing
  • Rack installation with 3 units
  • High power/weight-relation
Power supply:230 V AC, 50 Hz
Power consumption:3400 W
Power output sine:

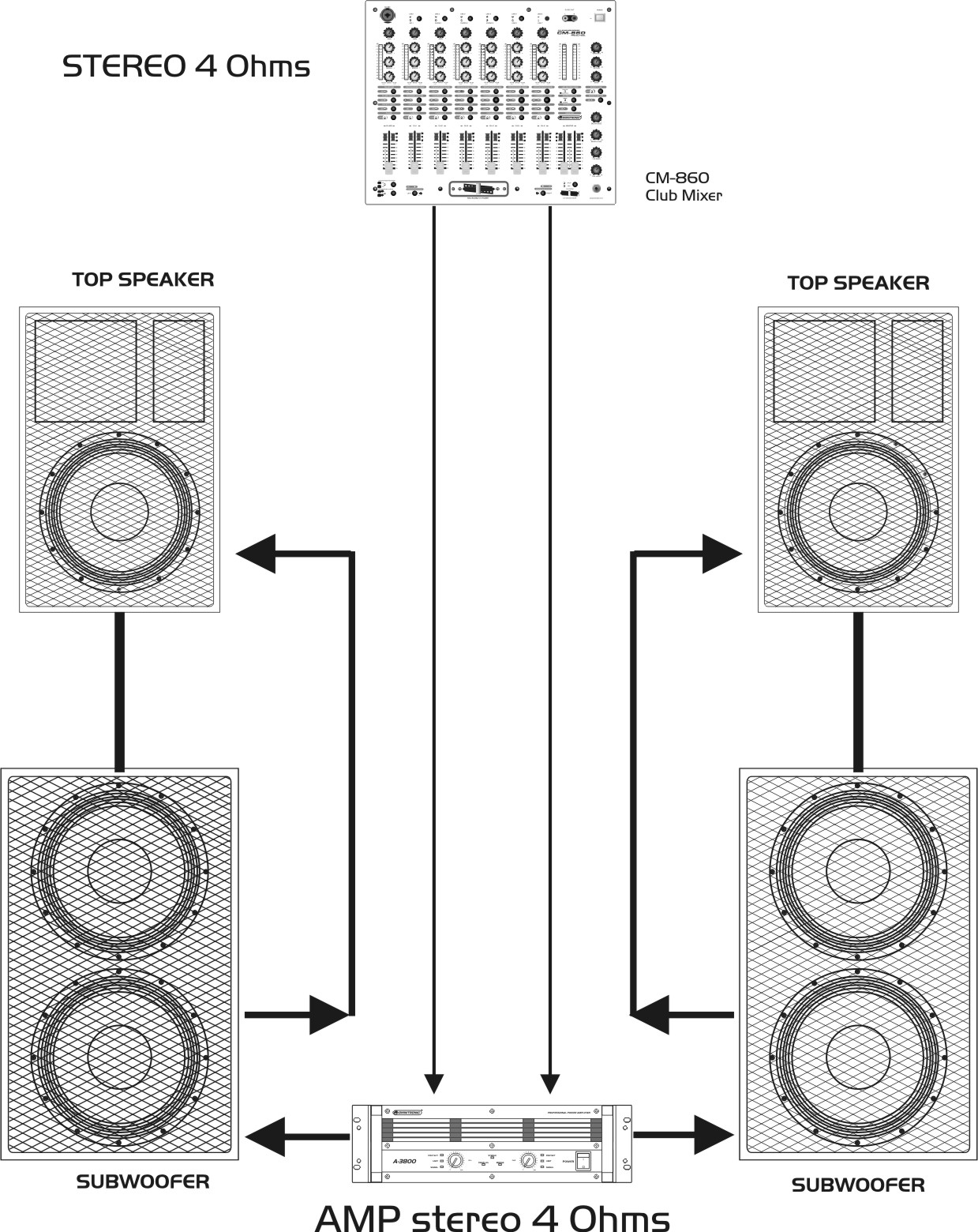

Stereo 4 ohms2 x 1350 W

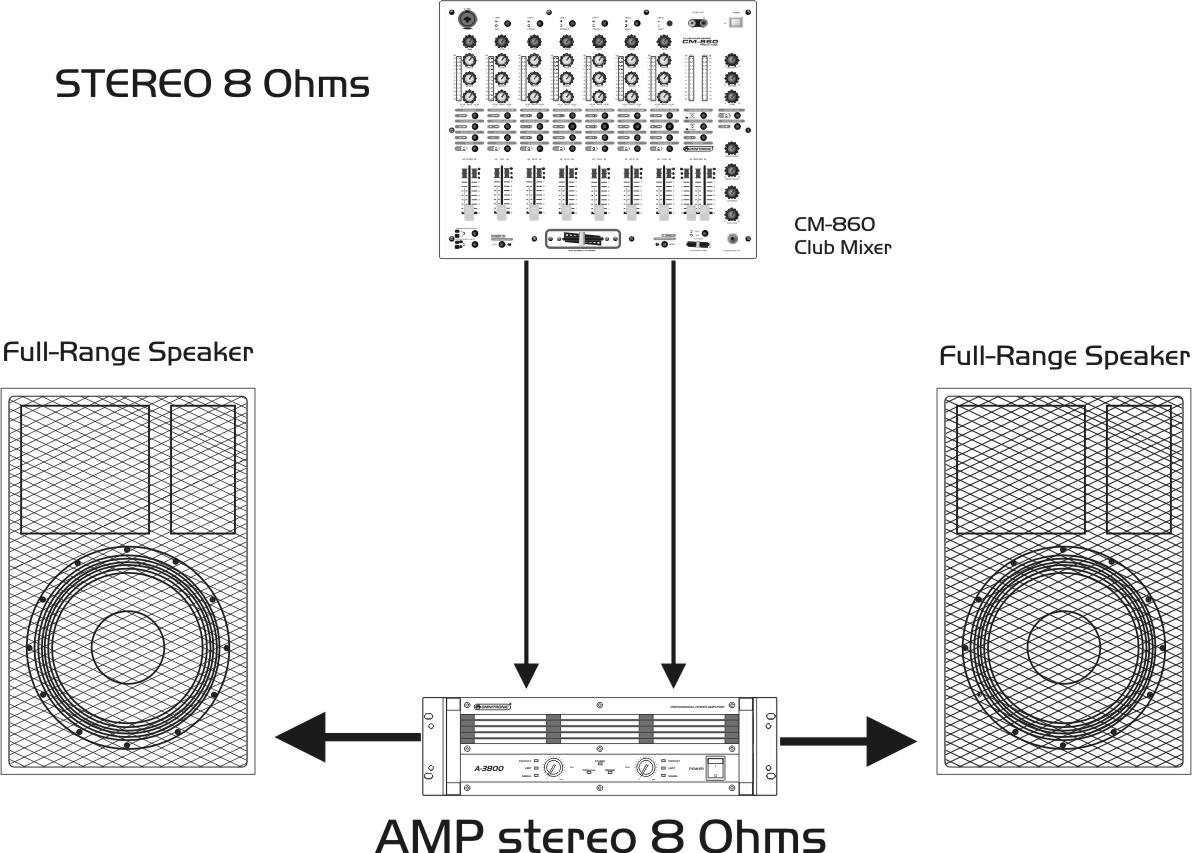

Stereo 8 ohms2 x 900 W
8 ohms bridged1 x 2700 W
Frequency range:20-20000 Hz, ±0.5 dB
Damping factor:>400
Distortion factor:0.01 %
Signal-to-noise ratio:>100 dB
Channel seperation (at 1 kHz):>70 dB
Min. input sensitivity:0.77 V/26 dB/1.44 V
Input impedance:20 kohms (balanced)
Slew rate:60 V/µsec
Input connectors:2 x XLR/6.3 mm jack mounting socket
Output connectors:2 x Speaker (stereo), 1 x Speaker (bridge), 2 x screw connectors
Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter
LED indicators:
Global:Stereo, Parallel, Bridge
Per channel:Signal, Clip/Limit, Protect
Protection circuits:Short-circuit, overvoltage, DC, thermal, softstart, limiter
Construction:Steel chassis, aluminum front panel
Dimensions:540 x 482 x 145 mm
Weight:31 kg
Power/weight-relation:87 W/ kg
Unità di confezione EAN Peso Dimensions
1 4026397182415 33.600 kg 60cm x 58cm x 19cm
