Goodbye to immovability
FUTURELIGHT PRH-540-2 Pro-Rotating-Holder

Télécharger l'image
Images des détails (5 au total)
FUTURELIGHT

Goodbye to immovability

FUTURELIGHT PRH-540-2 Pro-Rotating-Holder

L'article n'est plus disponible.
Réf. 51837615
Imprimer l'article
Étiquette de l'article
Vous trouverez ici les modes d'emploi et les téléchargements pour
FUTURELIGHT PRH-540-2 Pro-Rotating-Holder

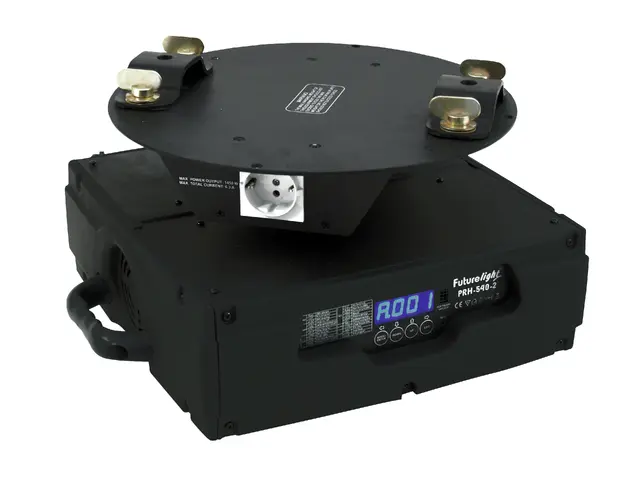

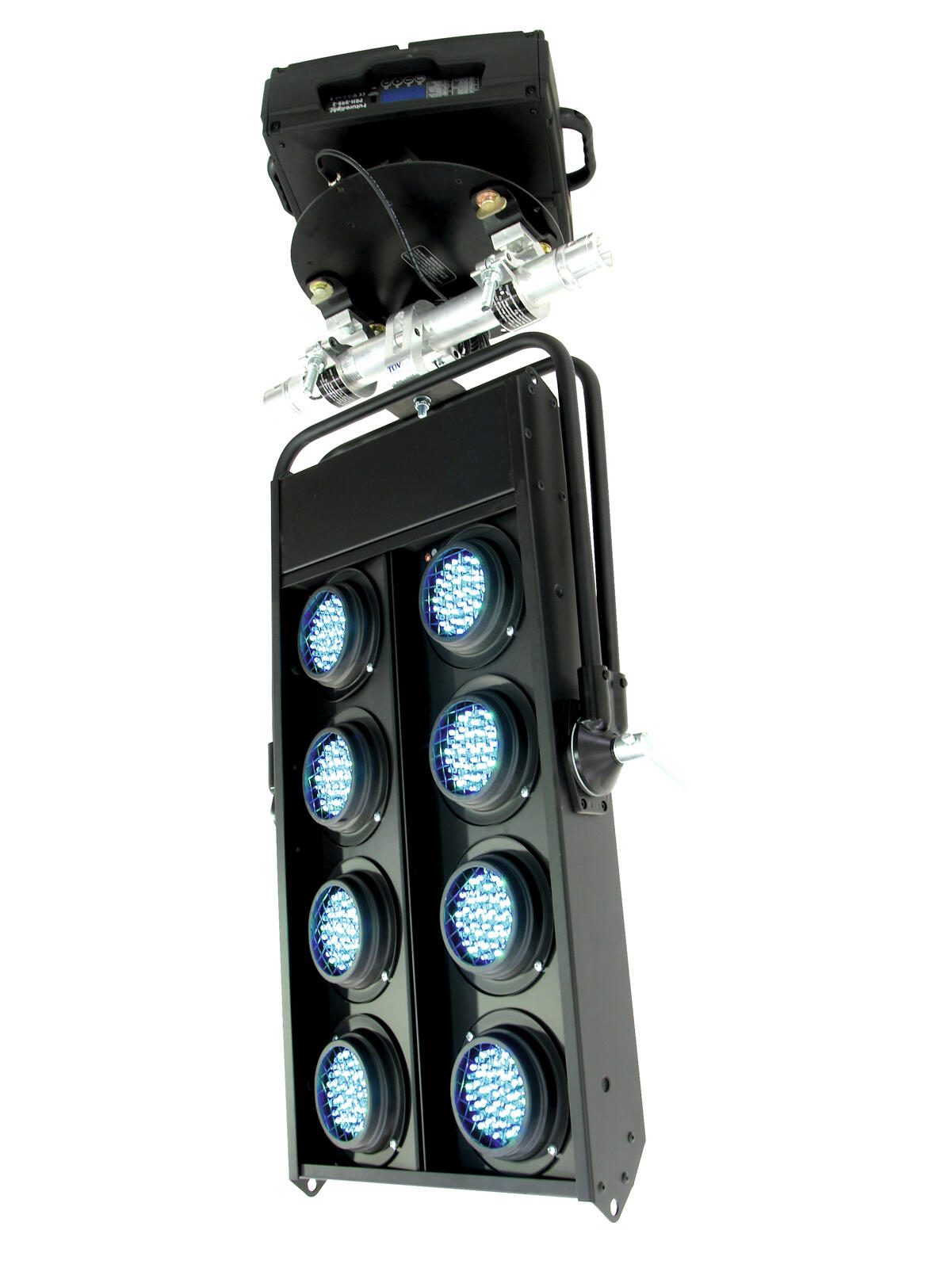

Get it movin'! Due to the PRH-540-2, classic lighting elements as smoke-machines or audience-blinders can perform up to two and a half turns. As a consequence, they can be used pretty variably. The light-effects are carried by a rotating plate. Despite of the turns, there should be no fear of cable spaghetti; because the blinders or smokers are connected directly beneath the plate. With this technology there are no problems with the transmission of DMX-signals.
Caractéristiques

Goodbye to immovability

  • Base with rotary plate for mounting smoke machines, lighting effects and much more
  • Ideal for a wide range of applications: fairs and exibitions, sales promotion in movie theatres, theatres and discotheques
  • A DMX output, separate power outlet and signal output for an external tilt motor allow for the application of a wide range of devices
  • Applicable for 15 kg maximum tearing load or 10 kg maximum pressing load
  • Soft rotation in both directions
  • Exact positioning via 16 bit Pan movement resolution
  • Automatic correction of the Pan position
  • Control board with 4-digit display and foil-keyboard for adjusting the DMX-starting address, Pan-Reverse, Program, Reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • DMX control via every standard DMX controller
Données techniques
Alimentation électrique:230 V AC, 50 Hz
Dimension:Largeur : 36,5 cm
Profondeur : 21 cm
Hauteur : 42,5 cm
Power consumption:1500 W
Max. power output (safety power outlet):1450 W
Max. total current (safety power outlet):6.3 A
DMX channels:4
DMX connection:3-pin XLR
Dimensions (L x W x H):425 x 365 x 210 mm
Max. tearing load:15 kg
Max. pressing load:10 kg
Weight:15 kg
Unités de conditionnement
UCEANPoidsDimension
1402639723002417,25 kg50cm x 48cm x 32cm
