High performance amplifier
OMNITRONIC A-3800 Amplifier,2x1900W/4 ohm

OMNITRONIC

High performance amplifier

OMNITRONIC A-3800 Amplifier,2x1900W/4 ohm

Caractéristiques

High performance amplifier

  • Class H construction: 2-step power output
  • 2 x 1900 W/4 ohm
  • Enormous power with highest brilliance

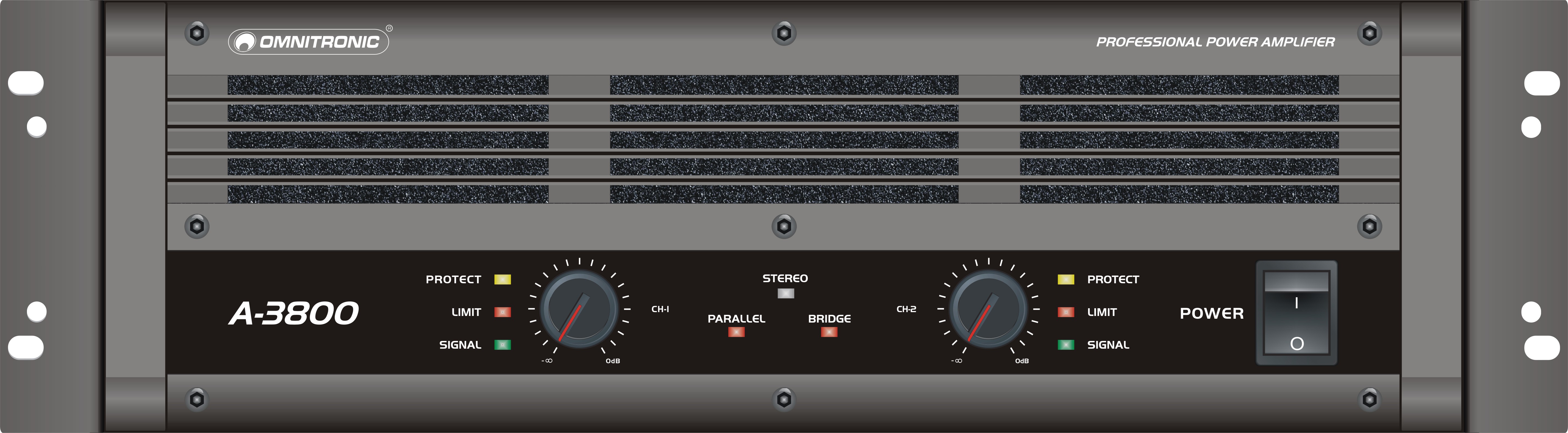

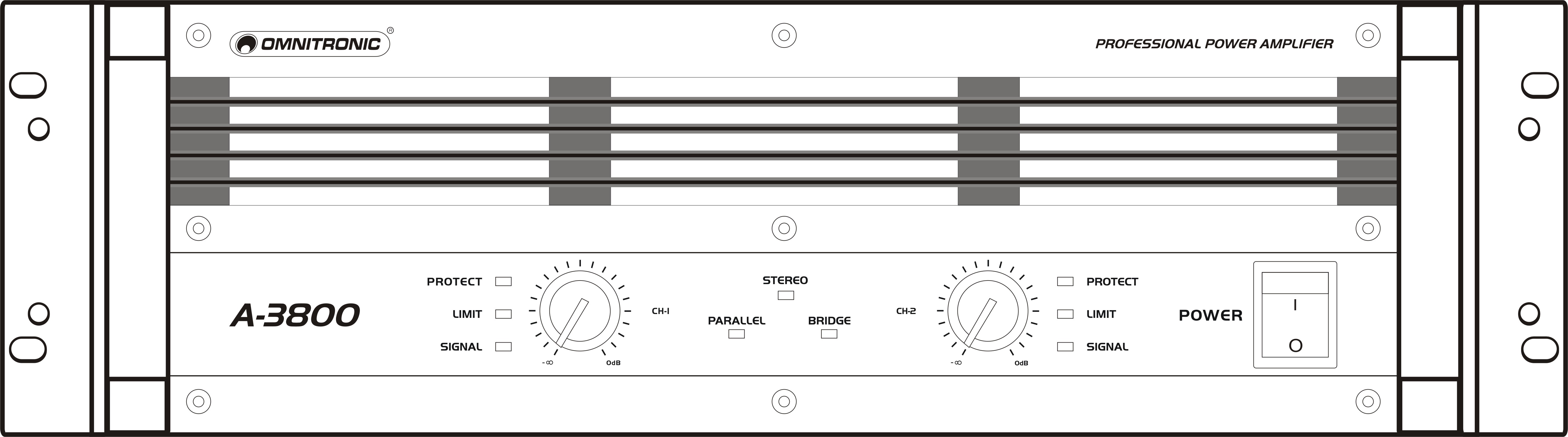

  • 2 gain controls on the front panel
  • All operation-modes controllable via LEDs
  • Signal inputs via XLR/6.3 mm jack mounting sockets
  • Signal outputs for daisy-chaining via XLR connector
  • Input sensitivity adjustable via selector on the rear panel
  • Speaker connection via lockable Speaker plugs or screw terminals
  • Limiter adjustable to the load impedance
  • Ground Lift switch against humming
  • Bridged switch for bridging
  • Many protection circuits for optimized equipment-protection
  • Very rugged housing
  • Rack installation with 3 units
  • High power/weight-relation
Données techniques
Alimentation électrique:230 V AC, 50 Hz
Puissance totale de raccordement:5400,00 W
Puissance de sortie:1300 W RMS (8 Ohm)
Dimension:Largeur : 48,3 cm
Profondeur : 54 cm
Hauteur : 13,35 cm
Poids:32,90 kg
Power output sine:

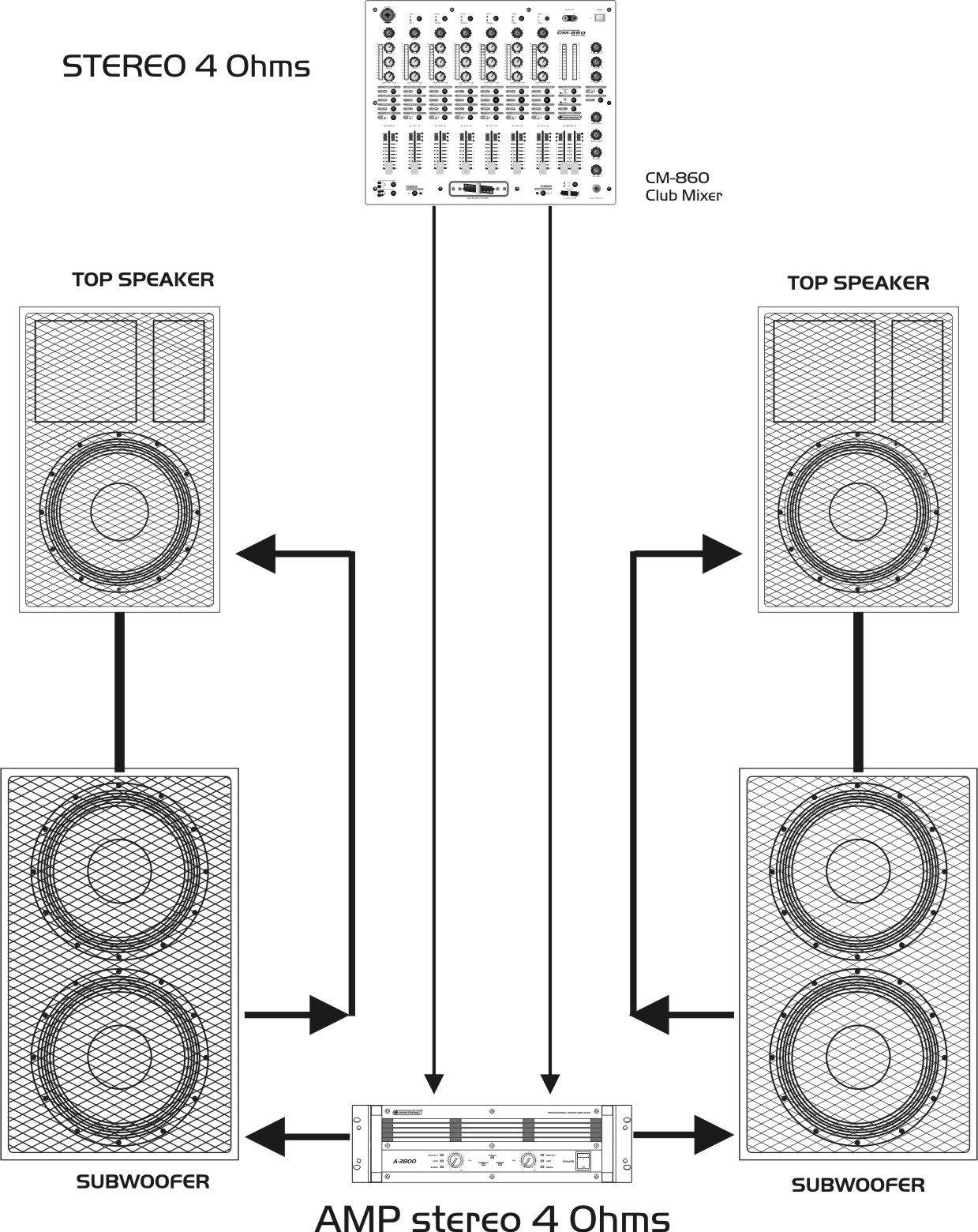

Stereo 4 ohms2 x 1900 W

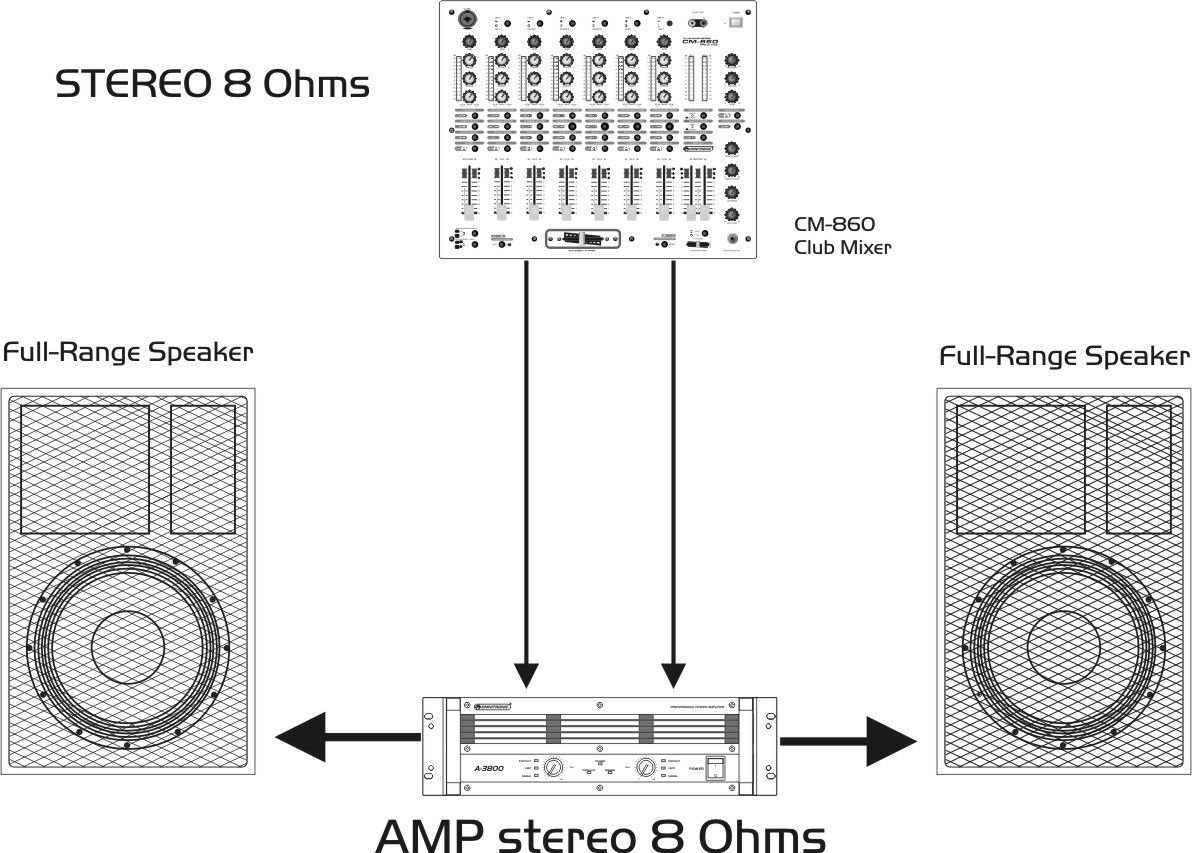

Stereo 8 ohms2 x 1300 W
8 ohms bridged1 x 3800 W
Frequency range:20-20000 Hz, ±0.5 dB
Damping factor:>400
Distortion factor:0.01 %
Signal-to-noise ratio:>100 dB
Channel seperation (at 1 kHz):>70 dB
Min. input sensitivity:0.77 V/26 dB/1.44 V
Input impedance:20 kohms (balanced)
Slew rate:60 V/µsec

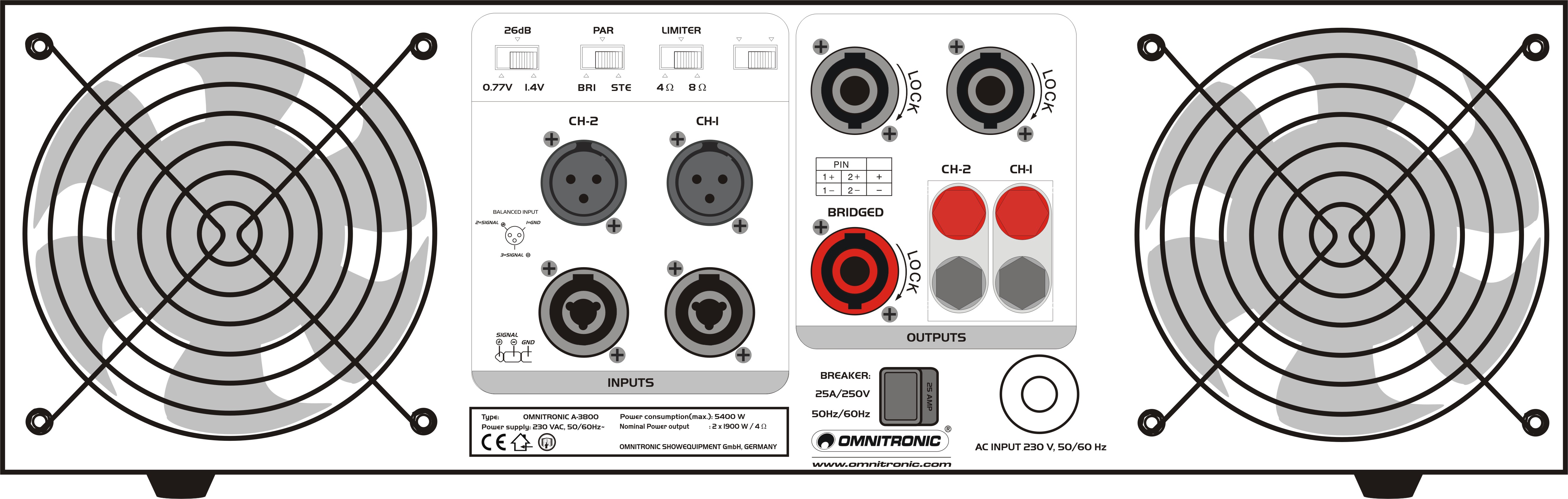

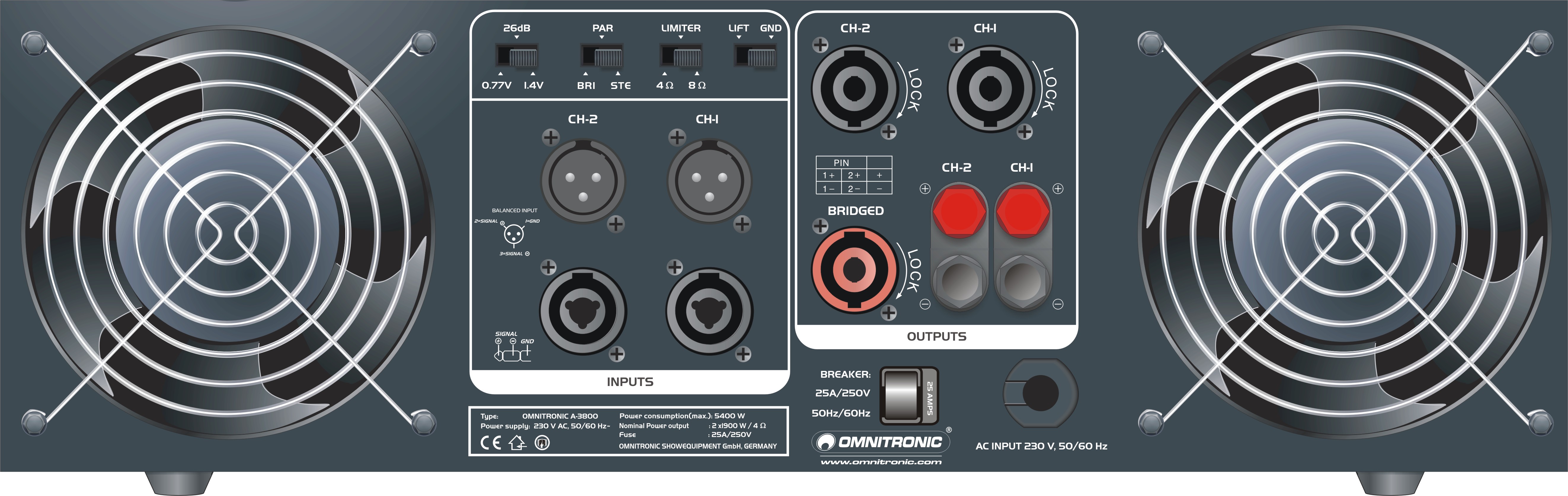

Input connectors:2 x XLR/6.3 mm jack mounting socket
Output connectors:2 x Speaker (stereo), 1 x Speaker (bridge), 2 x screw connectors

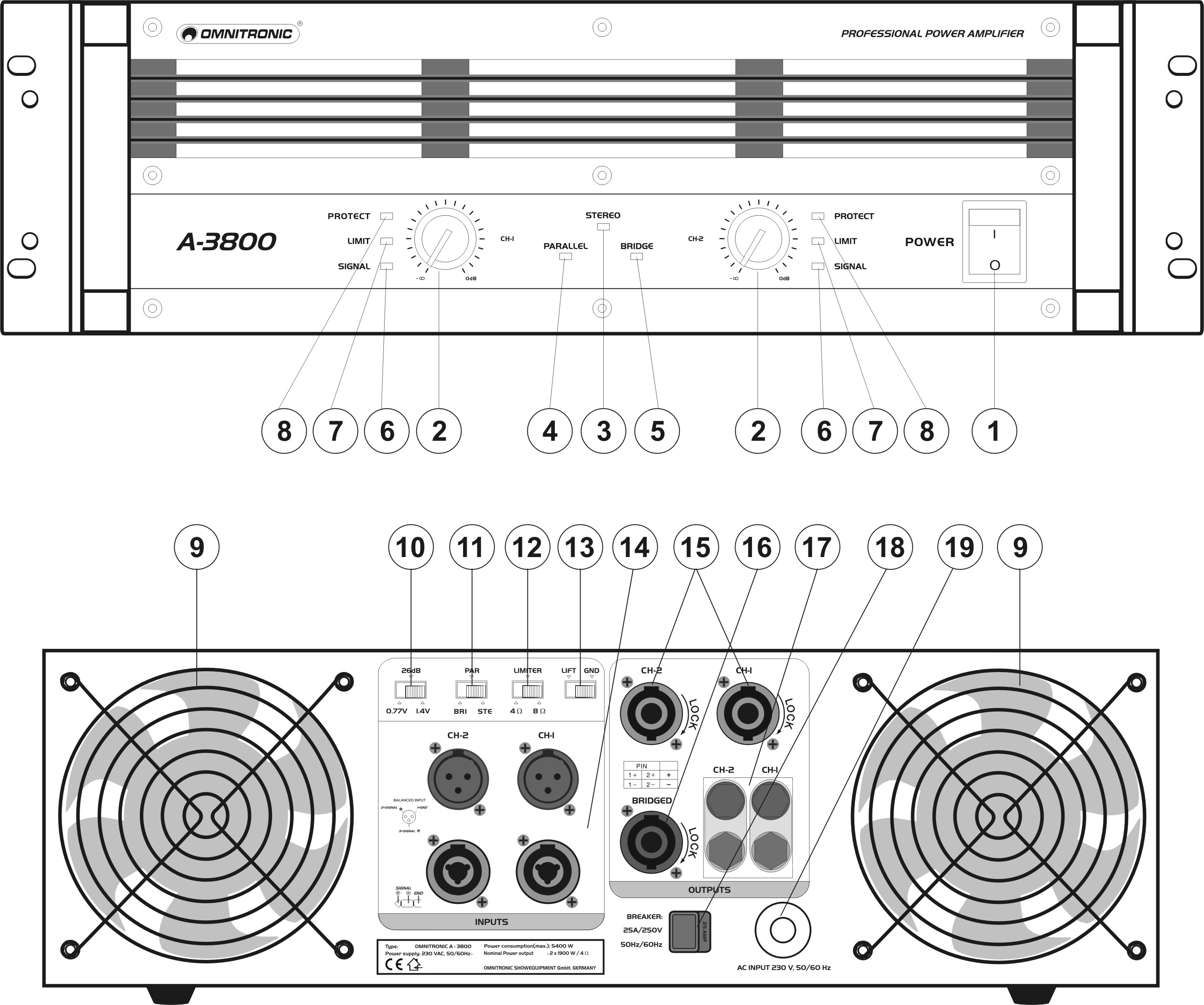

Control elements:Power switch, input attenuators (one per channel), Mode switch - Stereo/Parallel/Bridged, Ground Lift, Input-Level-Select (0.77 V/26 dB/1.44 V), limiter
LED indicators:
Global:Stereo, Parallel, Bridge
Per channel:Signal, Clip/Limit, Protect
Protection circuits:Short circuit, overvoltage, DC, thermal, softstart, limiter
Construction:Steel chassis, aluminum front panel
Power/weight-relation:109 W/ kg
Unités de conditionnement
UCEANPoidsDimension
1402639718242234,90 kg60cm x 57cm x 19cm
