10355525

OMNITRONIC GEQ-231 Equalizer 2x31-band

Loader
Loader
Les photos de cet article sont en cours de chargement. Merci de patienter...
This product has the successor:
OMNITRONIC GEQ-2310 Equalizer 2x31-Band
OMNITRONIC

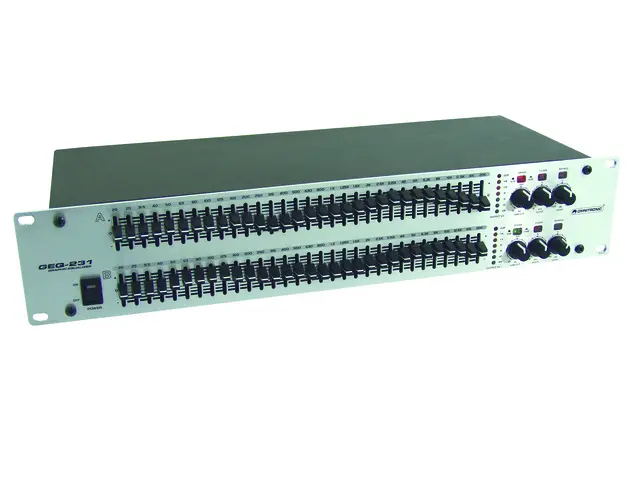

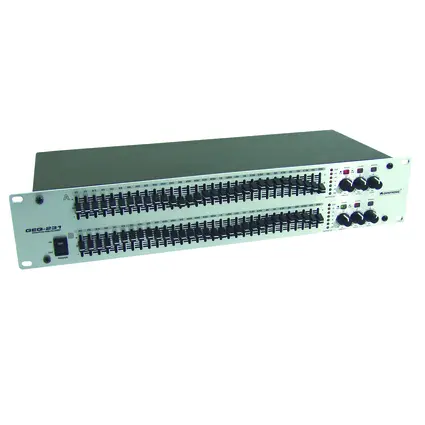

GEQ-231 Equalizer 2x31-band

2 x 31-band equalizer

Art. n° 10355525

  • 2-channel version, 2 x 31 frequency controls with 1/3 octave steps
  • Long sliding frequency controls with center click
  • EQ gain switchable ±6 dB to ±15 dB
  • Hi Cut (4-30 kHz) and Low Cut (10-300 Hz), switchable
  • Separate level control per channel
  • Bypass switch allows instant comparison of the original sound with the equalized sound
  • 7-fold LED level meter with clip indicator
  • Inputs and outputs via 6.3 mm jack sockets (1/4"), XLR sockets and screw terminals
  • Groundlift switch
  • Rack installation, 2 U
Power supply:230 V AC, 50 Hz
Power consumption:10 W
Input impedance:10/20 kohms (unbal./bal.)
Output impedance:300/150 kohms (unbal./bal.)
In/Out connectors:XLR, jack, screw connectors
S/N ratio:>95 dB
Crosstalk:>90 dB
Distortion:<0.01 %
Frequency range:20-20000 Hz, ±0.5 dB
Output level:-~ to +6 dB
Control range:±6 dBu or ±15 dBu
Frequencies:2 x 20/25/31.5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800 Hz, 1/1.25/1.6/2/2.5/3.15/4/5/6.3/8/10/12.5/16/20 kHz
Hi Cut:4-30 kHz
Low Cut:10-300 Hz
Dimensions (W x D x H):483 x 175 x 88 mm
Weight:3 kg
Conditionnement EAN Poids Dimensions
1 4026397467352 4.500 kg 52.5cm x 25.5cm x 16cm
6 4026397467369 28.900 kg 52.5cm x 55cm x 49.5cm
