DMX controlled pixel tube

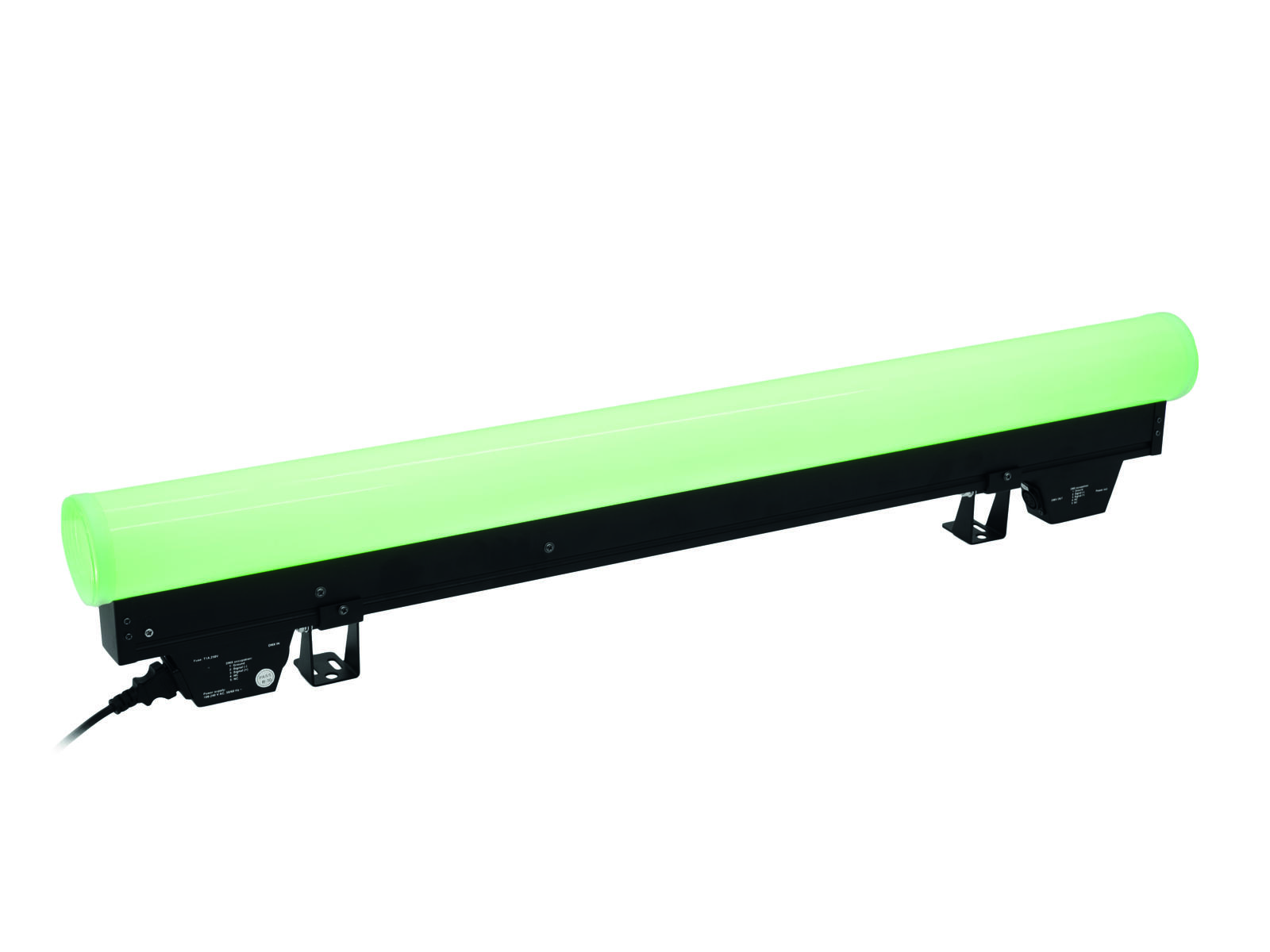

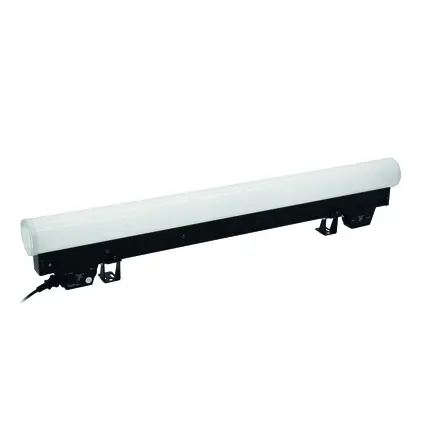

EUROLITE LED PT-120 DMX Pixel Tube

svg
svg
120°
svg
svg
svg
EUROLITE

DMX controlled pixel tube

EUROLITE LED PT-120 DMX Pixel Tube

Features

DMX controlled pixel tube

  • Tube with 144 LEDs: (48 x red, 48 x green, 48 x blue)
  • Subdivided into 16 pixels (illumination units à 9 LEDs) which can be controlled individually by DMX
  • Can be cascaded as desired in order to build-up large effect areas
  • Operable in stand-alone mode or via DMX interface
  • DMX512 control possible via any commercial DMX controller (occupies 48 channels)
  • DMX-512-connection via 5-pin XLR socket and plug
  • Sound-control via built-in microphone
  • Master/Slave for parallel operation of several devices
  • Comfortable addressing and setting via control panel with LED display and four operating buttons
  • Functions: static colors, automatic color change, seven internal programs with variable speed, dimmer settings via DMX
  • Adjustable white balance
  • Plastic housing with brackets for hanging as well as standing installation indoors
  • Feed-through output allows to power up to 8 devices
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Ready for connection via included IEC power cord with safety power plug
  • The device is cooled by passive convection cooling
  • Control via stand-alone; DMX
  • Preprogrammed in LED PC-Control 512
Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:17 W
IP classification:IP20
Cooling:Passive convection cooling
Control:Stand-alone; DMX
Preprogrammed in:LED PC-Control 512
Beam angle (1/2 peak):120°
Housing color:Black
Dimensions:Length: 1,02 m
Depth: 8,2 cm
Height: 18,7 cm
Weight:2,30 kg
DMX-control-channels:48
DMX-512-connection:5-pin XLR
Sound-control:via built-in microphone
LED type:5 mm
LED number:144 (R48, G48, B48)
Beam angle:120°
Dimensions (L x W x H):1018 x 82 x 187 mm
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
Packaging units
PUEANWeightDimensions
140263975289092,90 kg106cm x 13,5cm x 22,5cm
4402639753122012,90 kg109cm x 30cm x 48cm
Support
Spare parts
No spare parts available.
