Active 2-way speaker-system

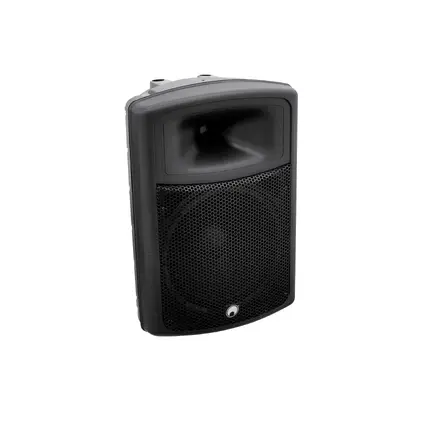

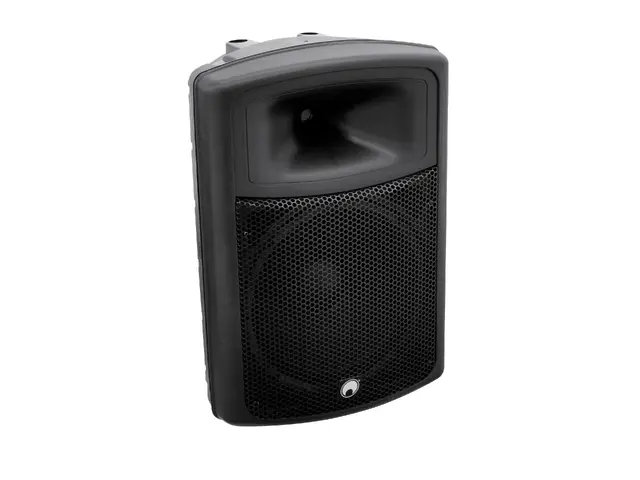

OMNITRONIC KPA-215A PA Cabinet active

OMNITRONIC

Active 2-way speaker-system

OMNITRONIC KPA-215A PA Cabinet active

Features

Active 2-way speaker-system

  • XLR and jack socket for direct connection with the signal source (line, mic)
  • Line/Mic pad for input level adjustment
  • Large mid-range horn with powerful driver
  • Bi-amped for cristal clear playback
  • Ideal as floor-monitor, standing, on a speaker stand or on a wall-mounting
  • Strong protective grille for perfect protection
  • Scratch-resistant plastic housing
  • Compact speaker system for car transport
  • Ideal for live music or discotheques
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Power supply:230 V AC, 50 Hz
Power consumption:510,00 W
Output power:Max. 510 W
Frequency range:55 - 18000 Hz
Dimensions:Width: 50 cm
Depth: 36 cm
Height: 73 cm
Weight:22,80 kg
Dimensions (H x W x D):730 x 500 x 360 mm
Speaker-system:
Rated power:250 W RMS
Program power:500 W
Components:38 cm woofer (15"), 2.5 cm horn (1")
Inputs:XLR/jack
Dispersion angle:90° x 40°
Maximum SPL:120 dB
Impedance:8 ohms
LF-amplifier:
Maximum power output:450 W / 4 ohms
Distortion:0.1 %
HF-amplifier:
Maximum power output:50 W / 4 ohms
Distortion:0.1 %
Packaging units
PUEANWeightDimensions
1402639720079925,10 kg55cm x 41cm x 76cm
Accessories
Loading accessories. Please wait...
Support
Spare parts
No spare parts available.
Downloads
Loading the documents. Please wait...
Similar products
Loading alternatives. Please wait...
