EUROLITE effect-wall set: 9x pixel mesh+ MADRIX DV

svg
svg
EUROLITE



EUROLITE effect-wall set: 9x pixel mesh+ MADRIX DV

Item no. 09009934
Set consisting of:
mpn80503110

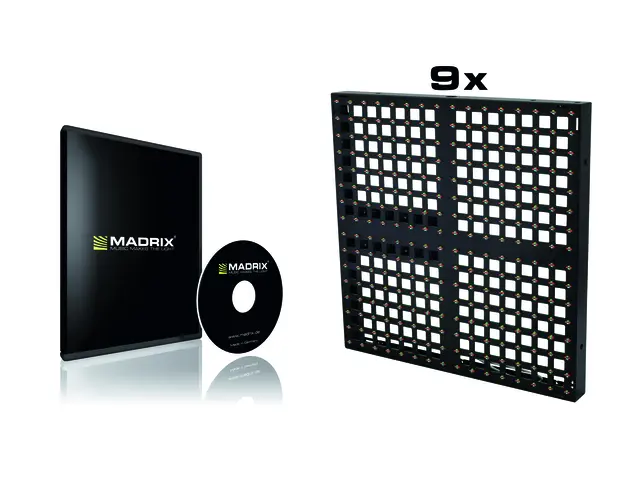

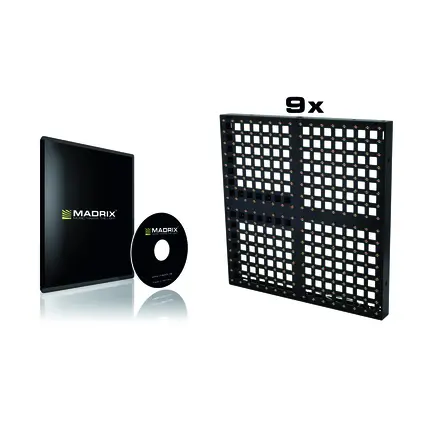

9 x EUROLITE LED Pixel Mesh 64x64
mpn51860300
1 x MADRIX KEY dvi
mpn80503120
1 x EUROLITE Scanning box
mpn80503130
1 x EUROLITE PCI sending card and software
mpn80503167
3 x EUROLITE Connection cable 6m for LED Pixel Mesh
mpn80503169
1 x EUROLITE Connection cable 20m for LED Pixel Mesh
Features

EUROLITE LED Pixel Mesh 64x64

Modular LED video panel for indoor use

  • Bright and colorful projection of videos, animations and graphics
  • Ideal for stage/fair construction and fixed installation
  • Modular display concept allows the build-up of large areas
  • 40 mm pixel pitch (seamless image at about 40 m)
  • 16 x 16 pixels
  • Transparent design
  • Fast and easy setup
  • Ethernet-based signal distribution, IEC inputs and outputs
  • Controllable via optional network components and PC software
  • For operation per 128 panels (256 x 128 pixels), the optional network interface (80503120) and the network control system consisting of sending card and software LED studio (80503130) is required
  • Compatible to media software such as MADRIX
  • Matching flightcase available
  • Delivery includes 1 x IEC cable, 1 x 50 cm RJ45 cable (80503165), 4 x U-connector (80503150), 4 x gasket (80503152), 4 x bolt (80503154), 1 x eye-bolt
  • The device is cooled by passive convection cooling
  • For further information about this product, please refer to the Data Sheet under "Downloads"

MADRIX KEY dvi

MADRIX dvi - software for DVI/T9output

  • MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
  • Allows you to realize all kinds of different LED projects and lighting designs
  • A normal PC/laptop can be used for professional LED control
  • Includes 1 license for the software MADRIX
  • Activates output for up to 307,200 DVI pixels (for example, 640 x 480)
  • The license is activated via a USB dongle and can be used flexibly on different computers as needed
  • Can be used in parallel with other MADRIX licenses
  • Can be upgraded to higher licenses (up to MADRIX KEY ultimate)
  • Supports many industry protocols and communication standards for direct connection to your LEDs and LED controllers (incl. DVI, Eurolite T9, ColourSmart Link, Colorlight 5A, Colorlight A8, Colorlight T9, etc.)
  • Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
  • The software generates unique effects, visuals, and animations live and in real time
  • No additional content is required
  • Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.)
  • Analyzes incoming audio signals Sound2Light and Music2Light in real time
  • New lighting scenes can easily be created in seconds
  • Supports media server features also: Conveniently load and play back images, pictures, and videos as well as live signal capturing, screen capturing, scrolling text (ticker), and more
  • Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
  • 256 x 256 Storage Places to organize and store effects
  • DJ-like operation with 2 decks (Left/Right) and a crossfader
  • 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
  • 2 DVI outputs
  • Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
  • Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
  • Supports Time Code from Art-Net, MIDI, SMPTE, and system time
  • Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
  • Accompanying Fixture Editor provided including large fixture library
  • Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
  • Supports various 3rd-party interfaces and MADRIX hardware interfaces (sold separately)
  • Minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0 (optimal system requirements higher - please pay attention to hardware limitations, such as computer performance)
  • Supported operating systems: Microsoft Windows Vista | 7 | 8 | 8.1 | 10 (compatible with 32 bit and 64 bit)
  • Package contents: DVD case with installation CD and USB dongle. The user guide is installed digitally.
  • Installation instructions and software available in English, Spanish, French, and Simplified Chinese
  • User manual available in English
  • Made in Germany
  • Free software demo version, user manuals, and more information available at www.madrix.com
  • Suitable for controlling LED Pixel Mesh and LED Soft Displays (LSD series)

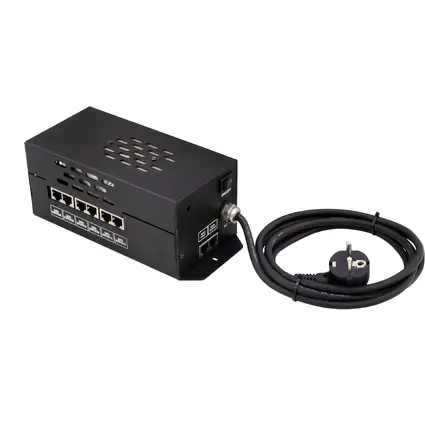

EUROLITE Scanning box

Network interface for LED Pixel Mesh

  • Network interface for controlling LED Pixel Mesh panels
  • For operation, the optional control system consisting of PCI sending card and software LED studio (80503130) is required
  • Connections for 128 panels (256 x 128 pixels); 16 panels horizontally each with 8 panels vertically
  • Ethernet input and output for serial connection of the interface
  • For further information about this product, please refer to the Data Sheet under "Downloads"

EUROLITE PCI sending card and software

Network control system LED Studio for LED displays

  • Network control system consisting of PCI sending card and media software LED Studio for controlling LED displays with a computer
  • 2 x 2-gigabit ethernet outputs, USB port, DVI port
  • LED Pixel Mesh: operation with interface (scanning box) 80503120
  • Supported formats: 640 x 480 / 800 x 600 / 1024 x 768 pixels
  • The device can be connected via RJ-45 (F) mounting version to the PC
  • For application areas such as: Advertisement/Shop window; Installation; Stage
  • For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

  • 1 x device, 1 x uSB cable, 1 x adapter cable

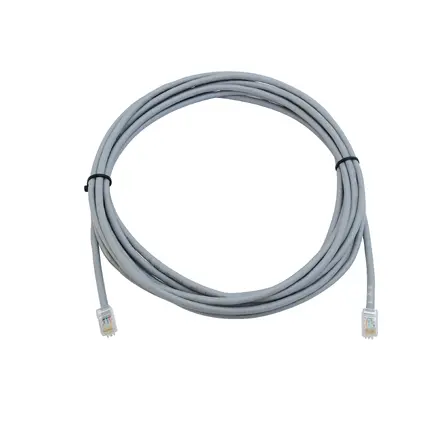

EUROLITE Connection cable 6m for LED Pixel Mesh

For LED Pixel Mesh

  • Patch cable between a vertical row of LED Pixel Mesh modules and the Scanning Box (80503120)
  • 6 m with RJ45 plugs
  • For further information about this product, please refer to the Data Sheet under "Downloads"

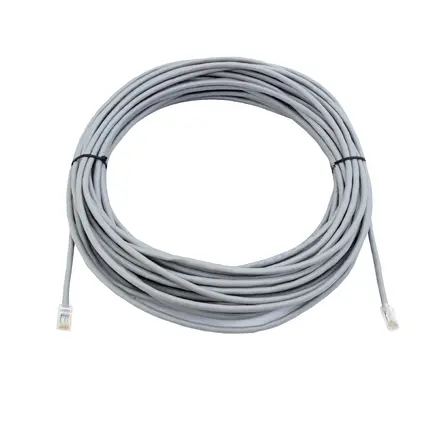

EUROLITE Connection cable 20m for LED Pixel Mesh

LED Pixel Mesh - cable

  • Connection cable between network interface (80503120) and PCI sending card (80503130)
  • 20 m with RJ45 plugs
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Weight:79,97 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
EUROLITE LED Pixel Mesh 64x64
Power supply:230 V AC, 50 Hz
Power consumption:75,00 W
IP classification:IP20
Cooling:Passive convection cooling
Housing color:Black
Dimensions:Width: 64 cm
Depth: 6,5 cm
Height: 64 cm
Weight:8,55 kg
Power connector:IEC input and output
Signal connector:RJ45
Pixel pitch:40 mm
Pixel configuration:2 red, 1 blue, 1 green
Module resolution:16 x 16
Density (point/m²):625
Brightness (cd/m²):1300
Scanning mode:Static
View angle:120°
Driving voltage:4.5-5.5 V
Grey scale:R256 levels, G256 levels, B256 levels
Frame rate:>/ 60 fps
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
EUROLITE Scanning box
Power supply:230 V AC, 50 Hz
Power consumption:50,00 W
IP classification:IP20
Housing color:Black
Weight:1,25 kg
Signal input:LAN, CAT5
Signal link:LAN, CAT5
Signal output:16 x RJ45
Series circuit:max. 128 displays per device
EUROLITE PCI sending card and software
Power supply:5 V DC 2 A
IP classification:IP20
Connections:Signal via 1 x USB B (F) mounting version
Signal via 2 x RJ-45 (F) mounting version
Signal via 1 x DVI
PC connect:Via RJ-45 (F) mounting version
Dimensions:Width: 16 cm
Depth: 13 cm
Height: 4,8 cm
Weight:240 g
EUROLITE Connection cable 6m for LED Pixel Mesh
Weight:240 g
EUROLITE Connection cable 20m for LED Pixel Mesh
Weight:730 g
